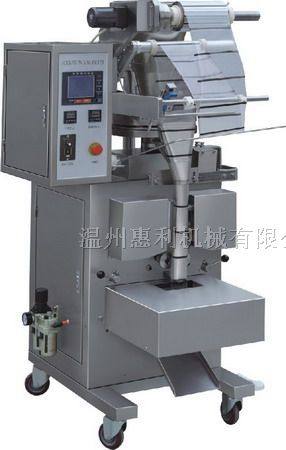

SJIII-K100自动颗粒包装机

SJIII-K100自动颗粒包装机
点击图片查看大图
详细信息
特点 Features

背封,三边封,四边封包装形式

包装运行数据及调节在显示屏上直观显示,直接操作

装配光电控制装置保证包装袋图案完整

自动完成制袋,计量,充填,封合,断切,计数,打印批号

壳体及物料接触部位使用不锈钢材料
Back sealing, three-side sealing, four-side packing method
The packing running data and adjustment are directly displayed on the display. The user can directly operate it on the displayer.
Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
It can automatically finish making-bag, metering, filling, sealing, cutting, counting
and printing batch number.
The body and the parts touching the material are made of stainless steel.

适合物料 Suitable material

食品,医药,化工,种子,日化行业松散状无粘性颗粒物料
It is applicable for packing foodstuff, medicine, chemical industry, seed, and the loosing
non-sticking granule daily chemical industry.

技术规格 Technical specifications
型号

Type

SJIII-K100

SJIII-K300
制成袋长 mm

bag-making length

50-170

50-280

制成袋宽 mm

Bag-making width

25-120

70-190
包装薄膜宽度 mm Packing film width 60-240 160-380
包装容量 ml

Packing capacity

5-100

50-1400

包装速度 bags/min

Packing speed

35-70

20-40

功率 Kw power

1.6

1.65

气源 Mpa

air power

0.6

0.65
耗气量 L/min

air consumption

100 100
外形尺寸 mm

Overall Dimension

760×980×1800

900×1120×2360
整机质量 Kg

Weight

300 480
