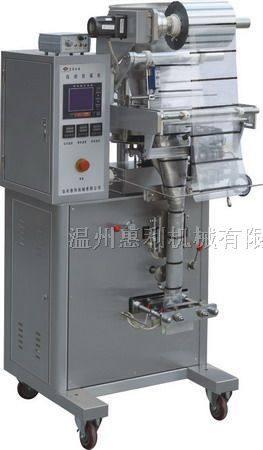

HXL系列自动颗粒包装机

HXL系列自动颗粒包装机
点击图片查看大图
详细信息
特点 Features

背封,三边封,四边封包装形式

包装运行数据及调节在显示屏上直观显示,直接操作

装配光电控制装置保证包装袋图案完整

自动完成制袋,计量,充填,封合,断切,计数,打印批号

壳体及物料接触部位使用不锈钢材料
Back sealing, three-side sealing, four-side sealing packing method
The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.
Assembled with a photoelectric controller to ensure that its packing bag figure are perfect.
It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
The body and the parts touching the material are made of stainless steel.

适合物料 Suitable material

食品,医药,化工,种子,日化行业松散状无粘性颗粒物料
It is applicable for packing foodstuff, medicine, chemical industry, seed, and the loosing
non-sticking granule daily chemical industry.

技术规格 Technical specifications
型号

Type

HXL-K100

HXL-K300

制成袋长 mm

bag making length

40-160

50-260
制成袋宽 mm

bag making width

25-120 70-190
包装薄膜宽度 mm packing film width 60-240 160-380
包装容量 ml

packing capacity

5-100

100-1000

包装速度 bags/min

packing speed

40-80

40-70
功率 Kw  power

2.4

2.6

外形尺寸 mm

Overall Dimension

690×1010×1750 900×1120×2360
整机质量 Kg

Weight

300

480
