SJIII-S系列自动半流体包装机(三边封)

SJIII-S系列自动半流体包装机(三边封)

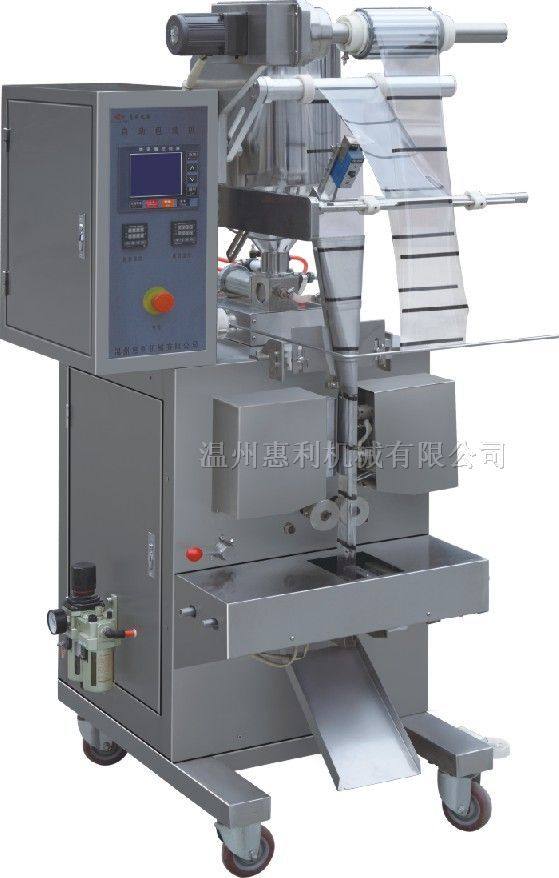

点击图片查看大图
详细信息
特点 Features

背封,三边封,四边封包装形式

包装运行数据及调节在显示屏上直观显示,直接操作

装配光电控制装置保证包装袋图案完整

自动完成制袋,计量,充填,封合,断切,计数,打印批号

壳体及物料接触部位使用不锈钢材料
Back sealing, three-side sealing, four-side sealing packing method
The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.
Assembled with a photoelectric controller to ensure that its packing bag figure are perfect

It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
The body and the parts touching the material are made of stainless steel.

适合物料 Suitable material

洗发水,护发素,洗液,酱油,止咳露,农药,饮料,酒,酱料,各类液体

It is applicable for packing the liquid like hairdressing water, hair conditioner, lotion, soy sauce, cough syrup, agricultural chemicals, wine and sauce.
技术规格 Technical specifications
型号

Type

SJIII-S100

SJIII-S300 SJIII-S500
制成袋长 mm

bag-making length

50-150

50-300 80-300
制成袋宽 mm

Bag-making width

25-120

70-190 90-190
包装薄膜宽度 mm Packing film width 60-240

160-380

200-380

包装容量 ml

Packing capacity

5-100

50-1000

200-2000

包装速度 bags/min

Packing speed

30-60

20-40

15-30

功率 Kw power

1.6

1.6 1.6
气源 Mpa

air power

0.65

0.65 0.65
耗气量 L/min

air consumption

150

180

200

外形尺寸 mm

Overall Dimension

760×1380×1700

900×1800×2040

900×2000×2040

整机质量 Kg

Weight

300 480

650
