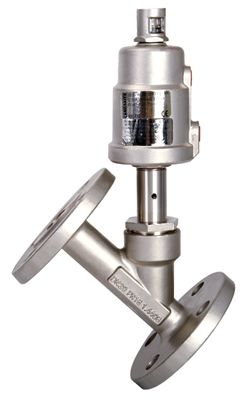

全不锈钢法兰气动角座阀

气动法兰角座阀
技术参数Technical data
◆压力范围Pressure range:0-16bar
◆介质温度Medium temperature:-10℃～+180℃
◆环境温度Environmental temperature:
    -10℃～+60℃
◆规格Specification:
  DN10-DN80,3/8＇-3＇
◆控制压力：3-8bar
◆阀体材料Body material:不锈钢Stainless steel，CF8/304,CF8M/316
◆密封材料Sealing material:
   聚四氟乙烯PTFE
◆执行机构外壳Actuator material:聚酰胺PA
◆介质Medium:中性气体、空气、水、蒸气
    Neutral gas, air, water,Vapor
◆制造标准Manufacture standard:
   3A,ISO,DIN.IDF
◆特点：双作用、单作用、防水锤

外部先进导角座阀，溢流口与滑块间
有自调节密封压盖，阀体角座结构可
实现较大流量，特别是与普通截止阀
相比时。
External advanced Angle, especially
compare with the normal globe valves
seat valve, there is adjustment sealing
gland between over flow drain and
slider, body structure can enforce more
flow rate, especially compare with the
normal globe valves.

选取Option
◆控制功能Control functions：常开Normally open
◆PPS执行机构外壳适用于环境温度：+5℃～+130℃
    PPS Actuator material suitable for environmental
    temperature: +5℃～+130℃
◆无复位弹簧双作用执行机构
    No return springdouble acting actuators
◆快装式连接
    Tri-clamp connection
◆电子式位置反馈
    Electronic position feedback
◆独立可调行程极限，适于高低流量
    Independent adjustable stroke limit,
    suitable for high low flow schedule
◆手动应急开关
    Manual emergency switch
◆先导阀适用的Namur适配器
    Pilot valve suitable Namur adapter
