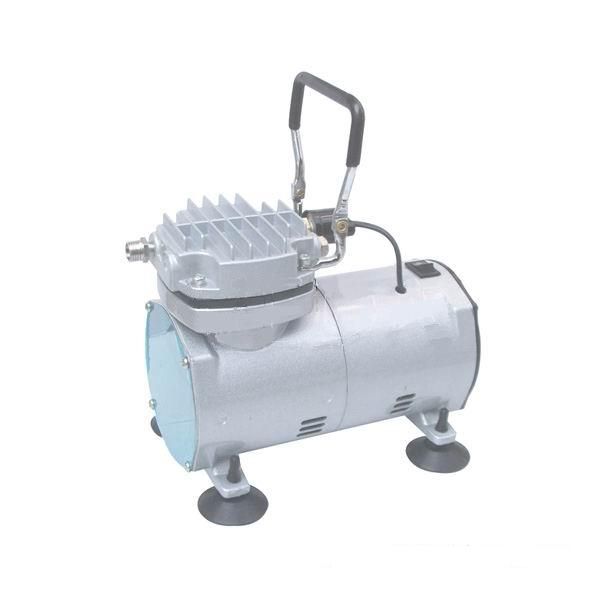

迷你空压机 TP20C

Item No.: TP20C

Made in: China

Type: Single Cylinder Piston Compressor

Power: 1/5 HP

Air output per min.: 23L/min

Auto stop, start at 40 psi, stop at 58 psi

Connections: with connection 1/4 BSP

Net Weight: 3.2KG

Dimension: 245*135*170mm

Packing: 47*29*52cm/6pcs

N.W/G.W: 20/22 KGS



1.This compressor is fitted with a 1/8''BSP screw thread connection for high-pressure Air    hose as  standard feature. To connect 1/4''BSP air hose,you will need a 1/4"-1/8" adapter.

2.Connect the appropriate pressure hose .

3.Connect the airbrush or other air tools.

4.Plug into the mains supply.

5.Press the on /0ff switch

6.The  manometer shows the working pressure .you can use the pressure adjustment       to set a Suitable working pressure

7.Ensure that the working area is well ventilated
