JQ-SCD-1200×800编织袋自动切缝机

JQ-SCD-1200×800编织袋自动切缝机

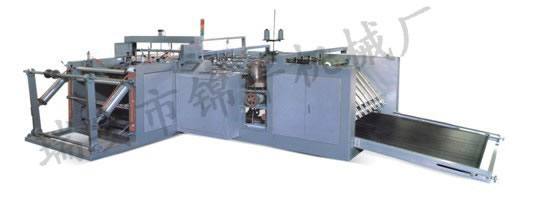

Automatic PP Woven Bag Cutting And Sewing Machine

特点Features

1、自动完成编织袋简布的定长热切割和底部缝纫，节省劳力。

2、采用伺服电机驱动，光码器计长，精确控制袋长。

3、热切割后袋子不粘连，易开口。

4、气动上卷，操作方便省力。

5、双折边、单折灵活运用。

1. It can automatically accomplish the normal-length cutting as well as the

    hemming for the woven cloth in roll, which saves labors forces.

2. It adopts the servo motor to drive and the optical code meter to count the

    length, which precisely controls the length of bags.

3. After the heating cutting, the plackets of bags are easy to open, not conglutinated.

4. By pneumatic up-coiling, the operation is so convenient.

5. Double hem, single fold use agility.

主要技术参数Main technical parameters

最大布卷直径   Max. Diameter of cloth roller(mm)        1200mm

最大裁切宽度   Max. Cutting width(mm)                800mm

裁切长度       Cutting length(mm)                    600-1200mm

裁切精度       Cutting precision(mm)                  ±4mm

折叠宽度       Folding width(mm)                     20-30mm

生产能力       Production capacity(pcs/m)              10-45只/分

总功率         Gross power(kw)                       6kw

重量           weight(kg)                            约2500kg

外形尺寸       Overall Dimensions(LWH)(mm)          6800x1800x1200
