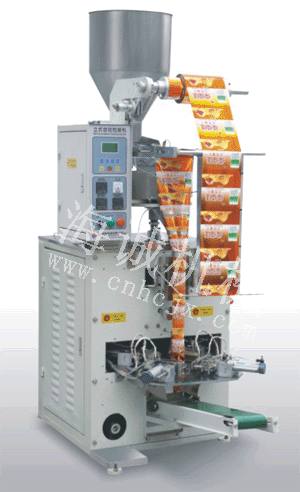

用途：Use
|
|
适合于膨化食品、花生、味精、精盐、小饼干、豆类、瓜子、糖果、蜜饯、休闲食品、山核桃等三角形袋包装。
|
|
Suitable for triangle-bag packaging powder materials like puffing food, peanut, gourmet, salt, biscuit, bean, seed, sweets.
|
|
|
|
特点：Features
|
1.设计合理，结构简洁。
2.单片机、步进电机控制，袋长设定方便，准确。
3.调速简单、快捷。
4.自动完成制袋、充填、计数、封口、切断的全部包装过程。
5.可选配色带打码机、充气装置(气源自备)。
|
Reasonable design, simple structure.
Controlled by single-chip computer, stepping motor, convenient
and correct bag length setting.
Simple, fast speed regulation.
Automatic completion for bag-making, filling, counting, sealing and cutting
Optional: ribbon coding machine, gas-filled device (air source supplied by users),
|
|
|
|
主要技术参数 Main Technical parameter
|
|
|
|
包装速度
|
Packing speed
|
20-60bags/min
|
|
制袋尺寸
|
Bag-making size
|
(L)50-180mm (W)50-130mm
|
|
计量范围
|
Filling range
|
20-200ml
|
|
包装膜宽
|
Film width
|
120-280mm
|
|
包装材料
|
Packing materials
|
OPP/CPP PET/PE 等复合材料
|
|
薄膜厚度
|
Film thickness
|
0.04-0.08mm
|
|
电源功率
|
Power supply
|
AC220V 50Hz 1.8kw
|
|
机器尺寸
|
Machine dimensions
|
(L)1250×(W)900×(H)2100mm
|
|
整机重量
|
Machine weight
|
350kg
|
|
|
