用途：Use
|
|
该机广泛用于药品、食品、保健品、化妆品、文具用品、音像制品等行业中的各种盒式物品的单件或多件（集合包装）自动包装。如对盒装药品、食品；条包香烟、扑克；盒装光盘、磁带、餐巾纸等物品的包装。
|
|

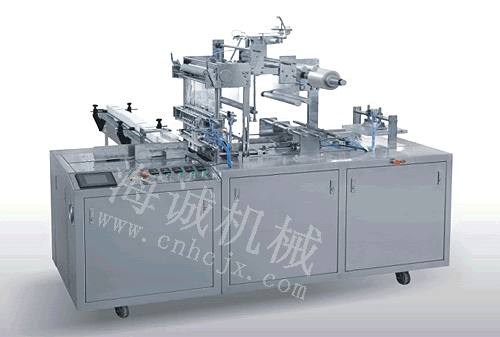

This machine is widely used for packaging various box products (single or several boxes)in drug, food, health products, cosmetic, stationery, and sudio-vidio products, such as the packing of box drug and food, packing of carton cigarette and poker, packing of box CD/VCD, tape and napkin paper etc...
|
|
|
|
特点：Features
|
1.本机采用PLC 人机界面控制。
2.送膜系统采用伺服电机，送膜尺寸定位准确。
3.动作全部采用气缸驱动，具有运行稳定可靠。
4.封口牢固、平整美观。
|
This machine adopt PLC+hunan machine interface control system.
Film conveying system is controlled by servo motor and size of film
conveying can be adjusted freely.
The machine is fully driven by air cylinder, stable running.
Firm seal, smooth and nice.
|
|
|
|
主要技术参数 Main Technical parameter
|
|
|
|
包装材料
|
Packing materials
|
OPP.BOPP.PVC 薄膜film
|
|
包装速度
|
Packing speed
|
15-35bags/min
|
|
包装尺寸
|
Packing size
|
(L)60-300 (W)50-240 (H)15-90mm
|
|
工作气压
|
Working pressure
|
0.6Mpa
|
|
电源功率
|
Power supply
|
AC380V 50Hz 6.5kw
|
|
机器尺寸
|
Machine dimensions
|
1.主机Main machine:(L)2300×(W)870×(H)2100mm
2.输送机Conveyer:(L)1650×(W)400×(H)1000mm
|
|
整机重量
|
Machine weight
|
800kg
|
|
