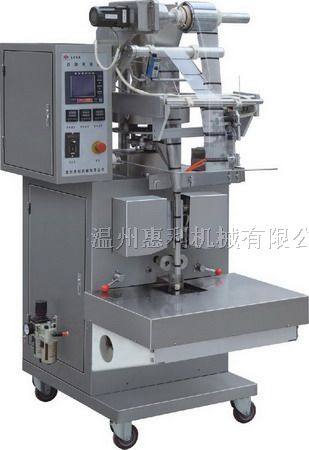

SJIII-LB150自动三角形包装机

SJIII-LB150自动三角形包装机
点击图片查看大图
详细信息
特点 Features

成品包装袋呈三角形,新颖别致

包装运行数据及调节在显示屏上直观显示,直接操作

装配光电控制装置保证包装袋图案完整

自动完成制袋,计量,充填,封合,断切,计数,打印批号

壳体及物料接触部位使用不锈钢材料
The Packing bag for the finished products is of triangle.
The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.
Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
The body and the parts touching the material are made of stainless steel.

适合物料 Suitable material

食品,医药,化工,种子,日化行业松散状无粘性颗粒物料

The packing bags of the finished products are triangle, new and unique.
技术规格 Technical specifications
型号

Type

SJIII-LB150

制成袋长 mm

bag-making length

50-150

制成袋宽 mm

Bag-making width

40-100

包装薄膜宽度 mm Packing film width 100-220
包装容量 ml

Packing capacity

5-100

包装速度 bags/min

Packing speed

30-60

功率 Kw power

1.6

气源 Mpa

air power

0.65

耗气量L/min

air consumption

100
外形尺寸 mm

Overall Dimension

840×1100×1760

整机质量 Kg

Weight

320
