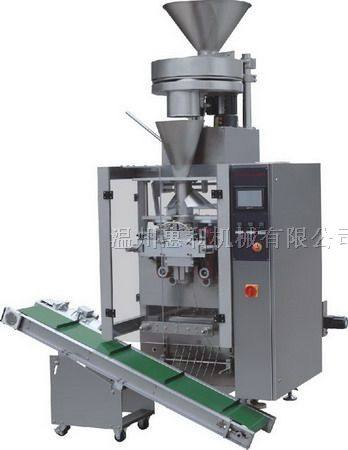

SJIII-K500自动颗粒包装机(复合膜)

SJIII-K500自动颗粒包装机(复合膜)
点击图片查看大图
详细信息
特点 Features

包装容量大

包装运行数据及调节在触摸式显示屏上直观显示,直接操作

装配光电控制装置保证包装袋图案完整

自动完成制袋,计量,充填,封合,断切,计数,打印批号

壳体及物料接触部位使用不锈钢材料
Large packing capacity
The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.
Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
The body and the parts touching the material are made of stainless steel.

适合物料 Suitable material

食品,医药,化工,种子,日化行业松散状无粘性颗粒物料
The packing bags of the finished products are triangle, new and unique.

技术规格 Technical specifications
型号

Type

SJIII-K500

制成袋长 mm

bag-making length

100-550

制成袋宽 mm

Bag-making width

120-290

包装薄膜宽度 mm

Packing film width

260-600

包装容量 ml

Packing capacity

250-5000

包装速度 bags/min

Packing speed

20-60

功率 Kw

power

3.5

气源 Mpa

air power

0.65

耗气量 L/min

air consumption

600
外形尺寸 mm Overall Dimension 1180×1890×2460
整机质量 Kg

Weight

800
