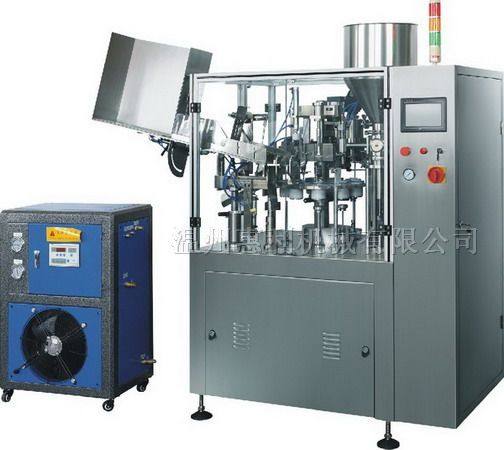

HGF系列自动灌装封尾机

HGF系列自动灌装封尾机
点击图片查看大图
详细信息
特点 Features

实现一机多用,可灌装折边或封尾不同要求的塑料管,铝管,铅管,复合管

自动完成供管,对标,软管内部清洗,灌装,封尾(折边),打码,成品导出

伺服控制,运行数据及调节在触模式显示屏上显示,直接操作,计量准确

管内壁式三层瞬间加热器,无损管外壁纹案胶膜,产品封尾美观

无管不灌装,低气压自动显示报警,供管不到位或打开防护门时自动停机
It can be a multi-purpose machine and can fill folded or seal plastic pipes,al pipes ,lead pipes and compoumded pipes.

It can autonatically finishing supply pipes,registering marks,cleaning the inside hose,filling,sealing ends or folding,marking and discharging finished products.

With a servo controller,running data and adjustment are displayed directly on the screen.It can be directly operated and meter accurately.

There are 3 layer constant heater,damage-free outer wall pattern rubber film,so the products are beautifully sealed.

It won't fill without a pipe.It can alarm automatically under the lower air pressure.It can automatically stop while it fails to supply pipes or its protection door is opened.

适合物料 Suitable material

化妆品、食品、医药、粘合剂、油脂行业的霜膏类、油膏类、乳膏类、凝胶剂等物料
It is applicable for the materials like cosmetics,foodstuff,medicine,adhesive,oil grease,milk cream,condensedgrease,etc.

技术规格 Technical specifications
型号

Type

HGF-50

灌装容量 ml filling capacity

5-250

灌装速度 pcs/min

filling speed

50
软管直径 hose diameter 10-50
软管长度

hose length

50-220
功率 Kw

Power

4.2
气源 Mpa Air power

0.55-0.65

耗气量 L/min

air consumption

200
外形尺寸 mm

Overall Dimension

2000×950×1900
整机质量 Kg

Weight

850
